45° Single Branch with Access Door

45° Single Branch with Access Door Featured Image
  • 45° Single Branch with Access Door
  • 45° Single Branch with Access Door
  • 45° Single Branch with Access Door

Short Description:

SML EN877 CAST IRON PIPE FITTINGS for building drainage

45° Short Bend with Access Door          88° Short Bend with Access Door

45° Single Branch with Access Door     88° Single Branch with Access Door

88° Long Radius Bend with Access Door

Standard: BS EN877/DIN 19522/ISO6594

Material: gray cast iron ISO185

Coating: Epoxy Resin Paint&Powder epoxy

Colour: red or gray

Marking: OEM or M-Tub or at customers’ requirements

Place of origin: China

Application: Water drainage

Tensile strength min.150Mpa

Maximum brinell hardness HB260

Internal coating resistance to salt spray: at least 350h, common 700 hours. resistance to waster water: at least 30 days at 23℃.

chemical resistance from PH2 to PH12 at least 30 days at 23 ℃.

resistance to temperature cycling: 1500 cycles between to 15-93℃


Download as PDF

Product Detail

Product Tags

Overview:

Place of Origin: China    Standard: BS EN877/DIN 19522/ISO 6594
Application: Water drainage Color: Red
Coating: Epoxy Resin Paints&Powder epoxy Coating Marking:OEM or M-Tub or at customers' requirements
Material: Gray cast Iron Size: DN40 to DN300

Packing & Shipping:

Packaging Details: Wooden pallet

Port: Tianjin

Type:

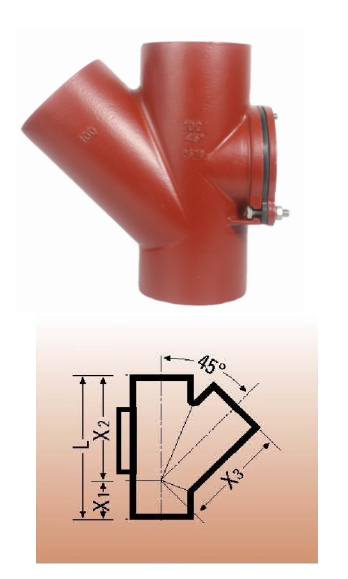

45° Single Branch with Access Door

45sbacesshdoor
DIA. X1 X2 X3 L
mm mm mm mm mm
50 x 50 51 135  135 186
75 x 50 50 140  140 190
75 x 75 66 160  160 226
100 x 50 35 165  165 200
100 x 75 55 175  180 230
100 x 100 70 205  205 275
150 x 75 58 228  212 286
150 x 100 55 240  240 295
150 x 150 90 265  265 355
200 x 100 65 285  260 350
200 x 150 75 300  300 375
200 x 200 115 340  340 455
250 x 250 130 430  430 560
300 x 200 82 428  440 510
300 x 300 155 505  505 660

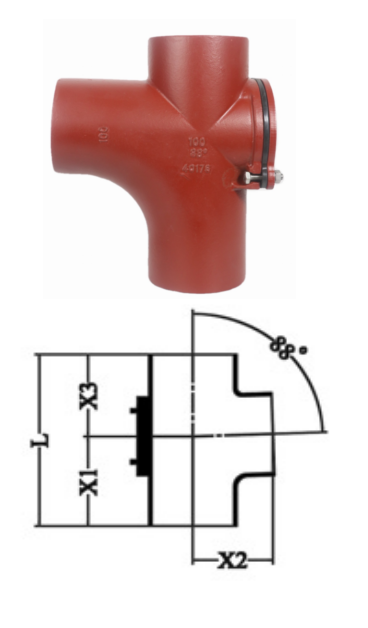

88° Single Branch with Access Door

88sbacessdoor
DIA. X1 X2 X3 L
mm mm mm mm mm
50 x 50 79 81.0  66 145
75 x 50 95 90.0  86 181
75 x 75 130 130 90 220
100 x 100 170 150 104 274
150 x 50 150 130 140 290
150 x 100 140 151 140 280
150 x 150 210 190 140 350
200 x 150 185 185 165 350
200 x 200 194 201 181 375
250 x 150 212 224 224 436
250 x 200 212 233 224 436
250 x 250 244 241 224 468
300 x 200 265 263 250 515
300 x 250 265 270 250 515
300 x 300 277 278 263 540

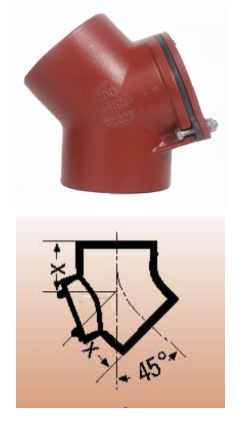

45° Short Bend with Access Door

45acessdoor
DIA. X
mm mm
50 59
75 75
100 82
150 112
200 141
250 180
300 205

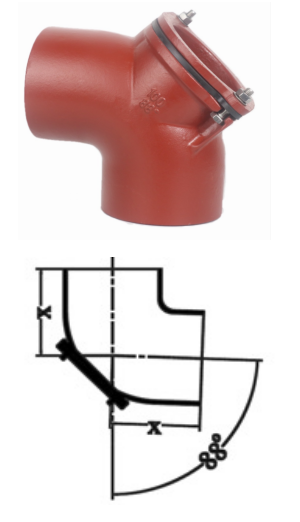

88° Short Bend with Access Door

88acessdoor
DIA. X
mm mm
50 75
75 95
100 112
100 153
150 148
200 180
250 220
300 260

88° Long Radius Bend with Access Door

QQ截图20220323162838
Internal Diameter(D) Radius(R) Cleaning Eye X1 X2 X3 X4
mm mm mm mm mm mm mm
100 200 100 217.1  217.1 233.1  233.1
100 600 100 495  495 620  620
150 600 150 522.4  522.4 630  630
200 600 200 550  550 640  640
150 300 150 314  314 340  340
200 400 200 410.8  410.8 447  447
250 600 260 582  582 650  650
300 600 310 610  610 660  660

Certification:

en877
